Truetzschler Superlap TSL 12

First-class Lap Quality

Uniform lap hardness, particularly good unwinding properties

Fastest lap change time – Increased productivity

Optimum lap quality, optimum combing result

Superlap TSL 12

Even faster

The Superlap TSL 12 accelerates the lap change and produces a first-class lap quality.

Every innovation has a core. With the Superlap TSL 12 there are even two: the lateral lap tube feeding and our multi-drive technology. It is only through the interaction of clever lap change, individually controllable and maintenance-free direct drives that lap changes can be carried out in 20 seconds. This allows you to achieve 15% higher productivity with the same settings.

Clever technology for high productivity

The Superlap produces premium quality laps with its multi-drive technology, consisting of four individually controllable and maintenance-free direct drives.

Fastest lap change time – Increased productivity

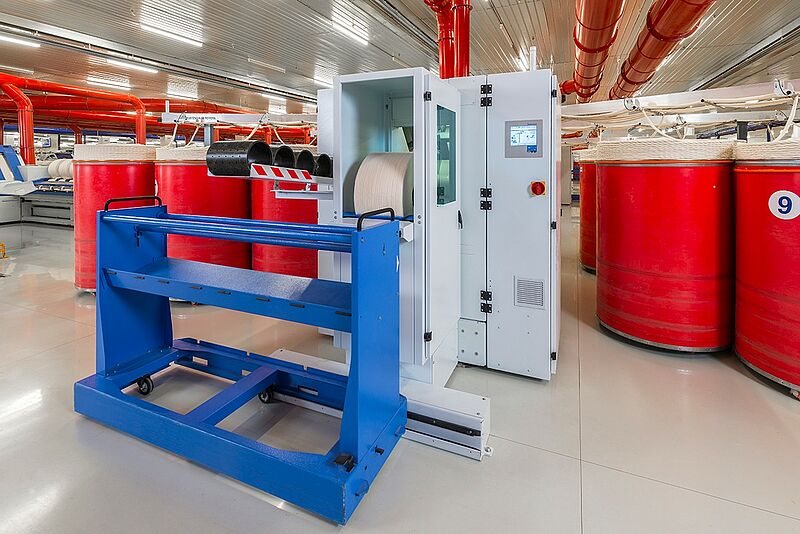

Lap changes in 20 seconds are only possible due to the individual drive technology and a clever tube change system. The empty tube on the TSL is inserted laterally at the same position where it is also wound shortly after.
With 400 lap changes per day, a 15 % increase in production means 60 more produced laps per day.

MULTI-DRIVE TECHNOLOGY

Lap separation is realised directly by drives
Uniform lap hardness, particularly good unwinding properties
Variable tension between the lap calenders
Independent guidance of new batt after cleaning

Pressure calender module: Preparation of the batt by removal of air pockets
Lap calender module: Winding of the batt onto the empty tub
Table calender units

Perfect calendering

Consistently high lap quality guaranteed

Laps must have the same properties from the first to the last metre.
On the one hand, this requires a uniform batt weight and on the other hand a perfect unwinding behaviour on the comber.
In order to meet both requirements, the multi-drive technology enables variable drafts during the winding process. Only with the TSL 12 is it possible to significantly influence the appearance of the laps via the tension between the two lap calenders.

Perfect calendering to ensure a good lap unwinding behaviour on the comber

The calender unit uses three pressure points. In addition to the pressure points between the pressure calender roller, there is also a calendering point to a lap calender roller.

Energy-efficient compressed air system

The lap calender technology leads to considerable reductions in compressed air consumption and thus offers attractive savings in running costs. This is clearly reflected in the kilogram price of lap production: 0.33€ per kilogram at the competition compared to 0.10€ per kilogram at Trützschler.
