NC-Xe NONWOVEN CARD

A low investment solution

For specific needle-punching and wadding applications
"e" as elementary and essential
"e" as expandable

A compact card for cost-conscious nonwoven manufacturers

The NC-Xe is the ideal solution for producers of technical nonwovens who rely on a powerful card. As a cost-efficient entry-level model, it offers access to proven Trützschler technology – without compromising on quality or service..

Typical applications:

  • Nonwoven geotextiles
  • Filter media
  • Automotive textiles
  • High-loft nonwovens (e.g. waddings)

Modularity meets technological expertise

Like all carding machines in the X-Series, the NC-Xe is based on the new Elements platform – a modular carding system that reflects decades of expertise. All models share the same core technology and can be flexibly adapted to product, process, and environment.

Advantages:

  • Unified core technology
  • Future-proof investment
  • Tailored configurations

Why NC-Xe card is the right choice

ATTRACTIVE

Low investment costs thanks to core technology without frills

OPTIMIZED

Compact design tailored to widespread applications

FUTURE-PROOF

Adaptable to new requirements through options and upgrades

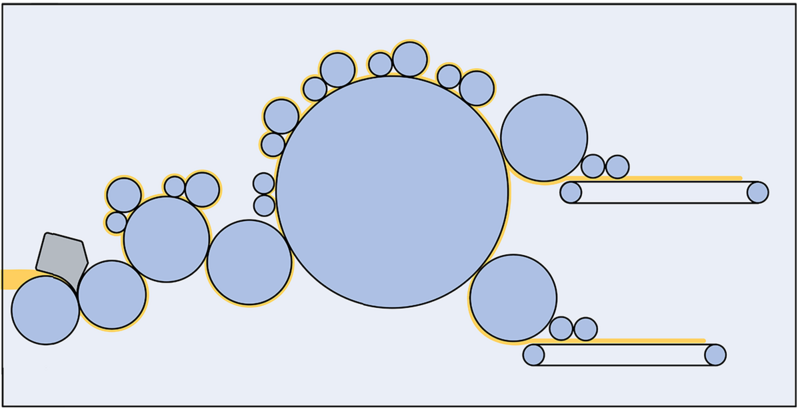

NC-Xe in der Basisausstattung

Technical highlights of the NC-Xe card

  • Compact design: low and short base frame reduces platform height – in some cases, the platform can be omitted entirely
  • 2,500 oder 3,000 mm working width
  • Pre-cylinder Ø 550 mm with 2 carding points
  • Main cylinder Ø 1,500 mm with 5 carding points
  • Combined drive for infeed rollers and pre-cylinder
  • Siemens 210 control system for infeed rollers, pre- and main cylinder
  • 2 doffers, optionally with condensing rollers

Clean Card Concept – no compromise on web quality!

  • Tightly sealed enclosure
  • Precision undercasings
  • Efficient dust extraction
  • Cleaning roller for upper condensing rollers

Smart options for even higher quality and efficiency

  • Condensing roller pairs at both doffers for high-loft nonwovens
  • Brakes for pre- and main cylinder: controlled stop without web breakage to avoid short rolls
  • Undercasing lifting device: tool-free access for easy cleaning




Upgradeable – ready for the future

The NC-Xe card grows with your requirements. Thanks to its modular design based on the Elements platform, it can be upgraded to NC-X or even NCT-X level..

Upgrading options:

  • Larger pre-cylinder (Ø 1,150 / 1,500 mm)
  • Adjustment of worker-stripper diameters for different fiber lengths
  • Lifting device for lower casings
  • Separate good fiber extraction
  • Rubber-coated take-off roller

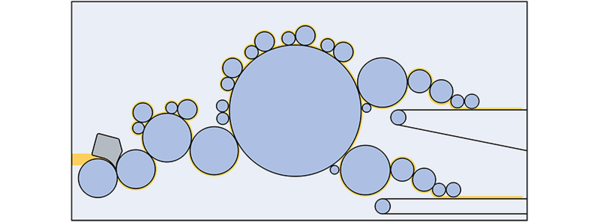

NC-Xe

Compact with pre-cylinder D=550 mm and 7 carding points

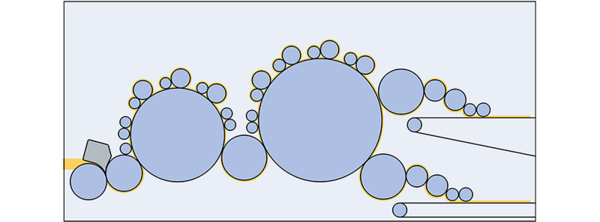

NC-X

With pre-cylinder D=1,150 mm and 10 carding pointsfor higher web quality

NCT-X

With pre-cylinder D=1,500 mm and double intermediate transfer for maximum carding and blending performance


Boost your nonwoven production with the X-series!

In today’s competitive market, effectiveness is crucial for nonwoven producers. Take a look at three critical factors: product quality, machine availability, and performance. Maximizing those results in better profitability and customer satisfaction.

Trützschler Nonwovens’ new NC-X and NCT-X cards are engineered to help producers achieve superior quality, uptime, and efficiency.
